Monitor Linux Server: Real-Time Infrastructure Dashboard
The Infrastructure Details module lets you monitor your Linux server in real-time - live CPU usage, RAM status, disk storage, and the top 10 running processes - all from a single visual dashboard inside CtrlOps. No terminal commands like top, htop, or free -h required.
Open the tab on any connected server to see whether it is busy, running low on memory, or close to filling up the disk. Metrics auto-refresh every 2 seconds, so the numbers are always current. Color-coded gauges turn from green to red as usage climbs, making it easy to spot bottlenecks before they cause downtime.
For deeper diagnostics, use the AI Terminal to ask questions like 'Why is my server slow?' and get AI-generated commands with human approval. Once a gauge tells you something is wrong, the Logs tab is usually where you find out what. For an overview of real-time server monitoring across your fleet, see the feature page.
What You Can Monitor on a Linux Server with CtrlOps
- See live CPU, memory, and disk usage at a glance - the same data you would get from running
top,free -h, anddf -h, presented visually - Spot the top 10 processes consuming the most CPU or memory
- End a runaway process from its row in the table, without typing a
killcommand - Free up cached memory in one click
- Clean out old logs and temp files to reclaim disk space (replaces manual
findandrmcommands) - Refresh all metrics manually or let auto-refresh update every 2 seconds
How to Monitor a Linux Server in CtrlOps

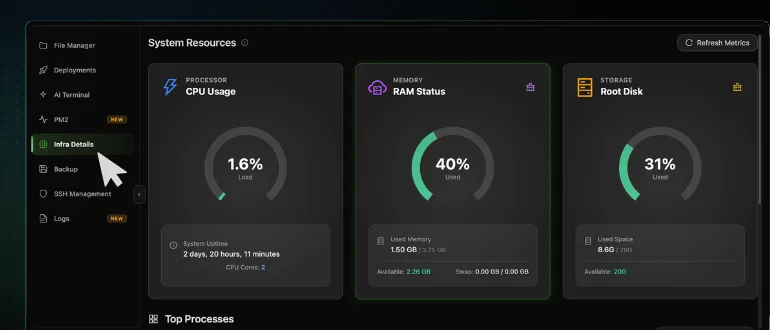

Open app → Click your server → Click the Infrastructure Details tab
You will see three circular gauges at the top - one each for CPU, memory, and disk - followed by a process table below. Metrics auto-refresh every 2 seconds while the tab is open, so you are always looking at live server health data.

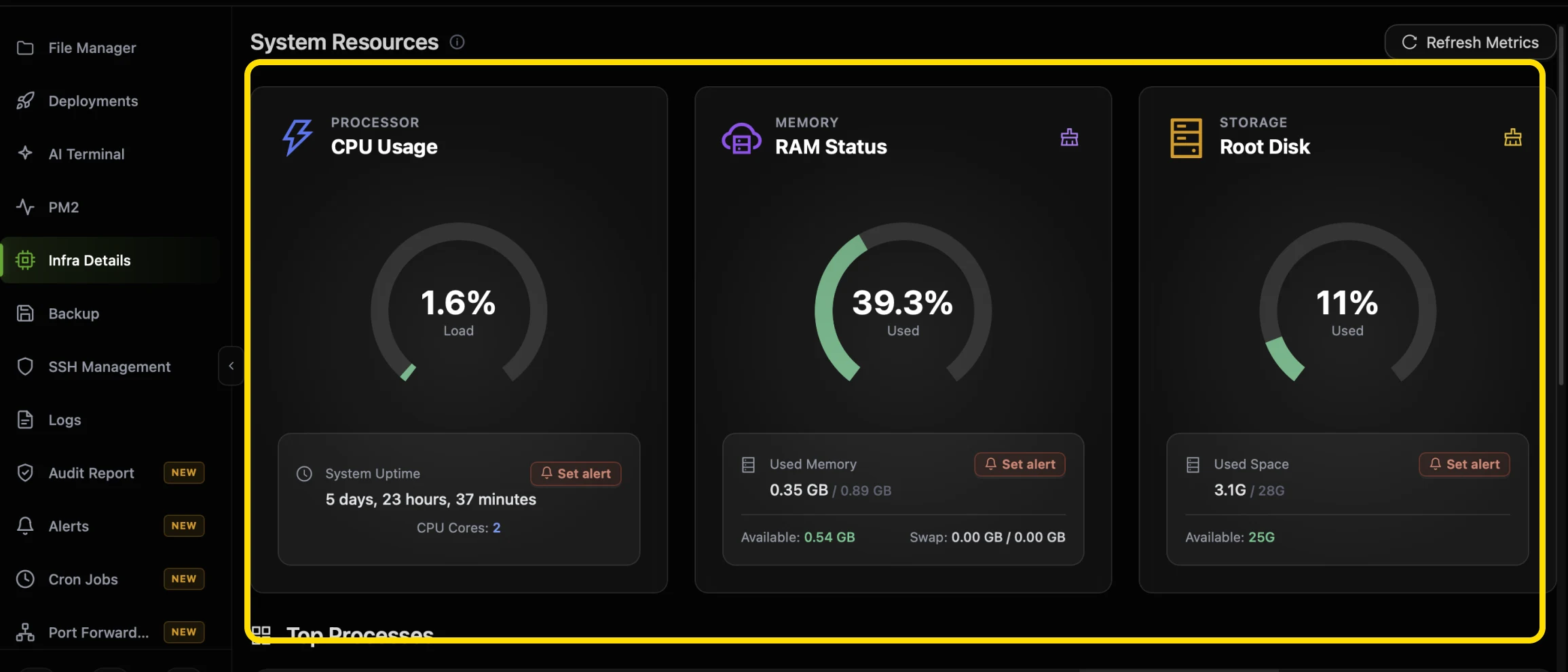

Understanding CPU, Memory, and Disk Usage Gauges
Each gauge uses a color-coded threshold system to help you monitor server health at a glance: green (0-60%), yellow (60-80%), orange (80-90%), and red (90%+). When a gauge turns red, it indicates a resource bottleneck that needs immediate attention.
| Card | What it shows | Extra info below the gauge |
|---|---|---|
| Processor | CPU load as a percentage | System uptime and number of CPU cores |
| Memory | RAM in use as a percentage | Used GB out of total, available memory, swap usage |
| Storage | Root disk used as a percentage | Used out of total size, available space |
Each card also carries a Set alert button in its footer, so you can be messaged when that gauge crosses a limit without leaving the tab. See Set an alert from a gauge below.
Monitor Top Processes by CPU and Memory Usage
Below the gauges, the Top Processes table lists the 10 heaviest processes running right now.
| Column | What it shows |
|---|---|
| PID | The process ID number |
| Process | The command or program name |
| CPU % | CPU usage. On multi-core servers this can go above 100% (100% means one full core) |
| Memory % | RAM usage as a percentage of total |
| Actions | A red trash icon that ends the process. See Kill a Runaway Process below. |
Click any column header to sort by that field. The table holds the top 10 only, so very small background tasks don't appear.
Refresh the numbers
Numbers refresh on their own every 2 seconds. If you want to force an immediate update:
Click Refresh Metrics (top right of the tab)
You'll see a brief spinner on the button, then the gauges and process list update.
Set an alert from a gauge
Watching a gauge is fine while the tab is open. For the rest of the time, set an alert on it. Each card has a Set alert button in its footer, and it opens the same ready-made alert the Alerts tab offers for that resource, so you set it where you are already looking at the number.
| Card | Alert it opens | Default limit |
|---|---|---|
| Processor | High CPU usage | 85% for 2 checks in a row |
| Memory | High memory usage | 90% for 2 checks in a row |
| Storage | Disk space low | 85% of the filesystem |

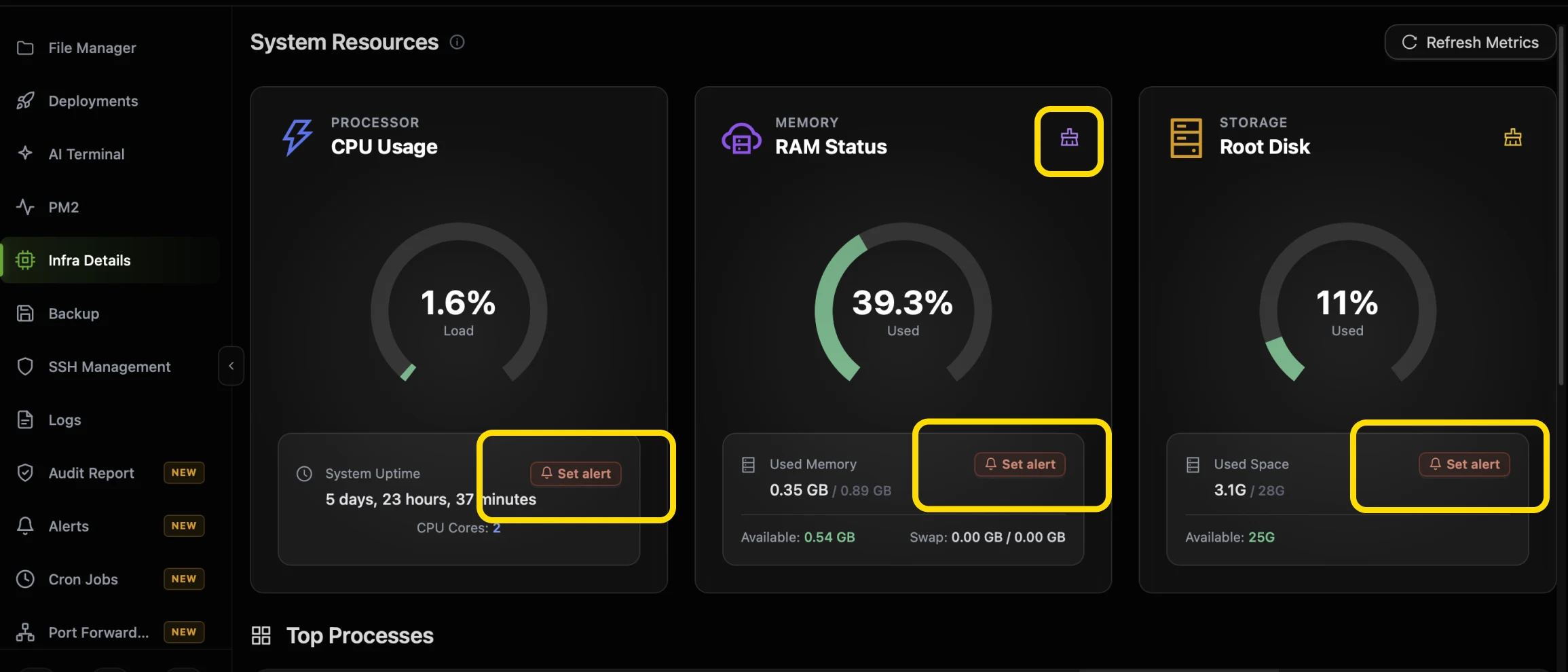

Click Set alert on the card
The button sits in the card's footer, next to System Uptime, Used Memory, or Used Space. It is red with a bell icon while no alert is set for that gauge.
Set the limit
The Turn on alert panel opens on Configure. For CPU that is the CPU limit, 85% by default, and Bad checks in a row before alerting, 2 by default. The panel shows how often the check runs, what your settings add up to, and a preview of the message with this server's name in it. Click Continue.

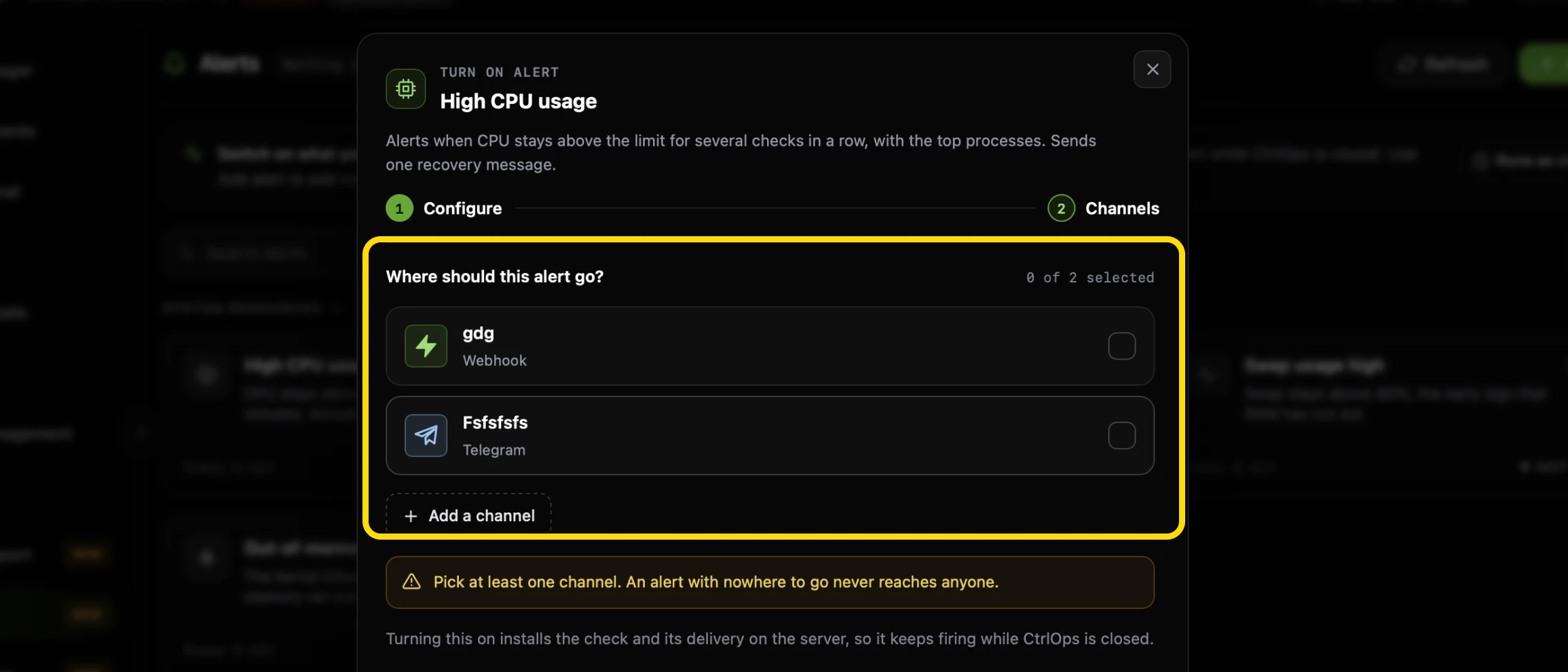

Pick a channel and turn it on
On Channels, tick the Slack, Telegram, or webhook channel the message should go to, then turn the alert on. Channels are saved once on the Alert Channels tab of the Home screen and reused everywhere.

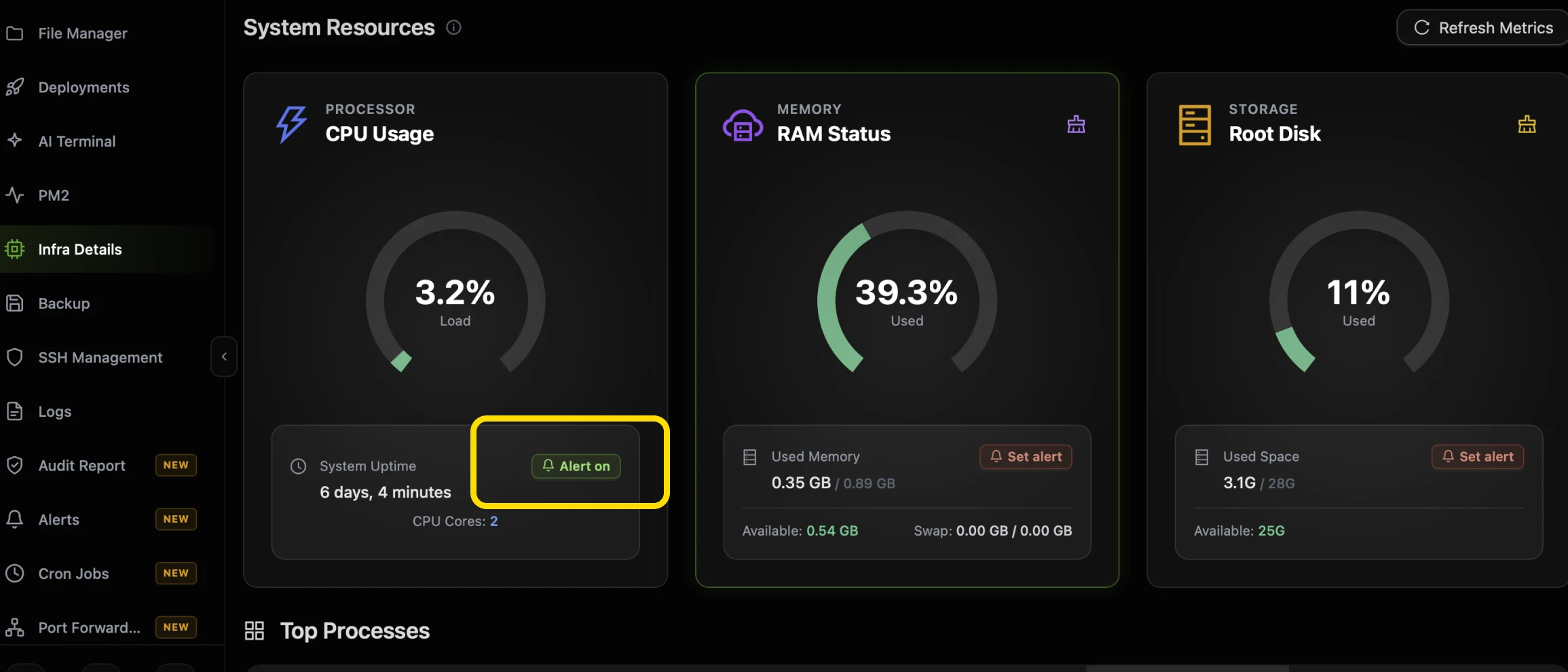

Check the button
Back on the card, the button is now green and reads Alert on. That is the whole signal: red Set alert means nothing is watching this gauge, green Alert on means something is.
The alert is a normal alert. It is installed on the server as a cron job, so it keeps checking and messaging while this tab, or CtrlOps, is closed, and it appears in the Alerts tab with every other alert on this server. Pause it, change the limit, or add a second one at a different limit from there.
Set the disk alert first. CPU and memory spikes usually pass on their own; a disk that fills up takes the server down and stays down. Disk space low at 85% gives you time to clean up before that happens, and the Clean Disk Space button below is the first thing to reach for when it fires.
Clear Linux Buffer/Cache Memory in One Click
When the Memory card is high but you suspect a lot of it is just cached data Linux is hanging on to, you can release it.

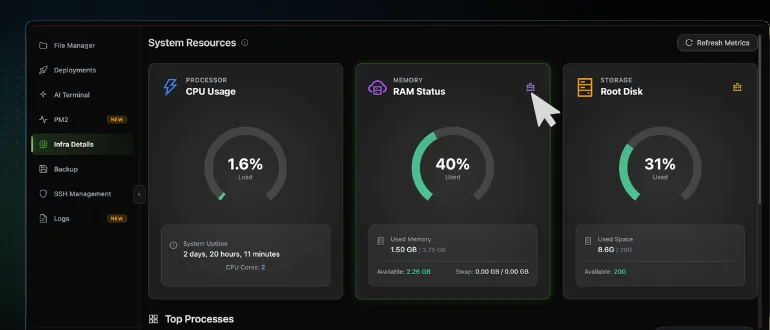

Find the Clear Buffer/Cache icon
Memory card → Top right corner → Brush icon (purple)
Hover over it to see the tooltip "Clear Buffer/Cache".
Click the icon
A toast pops up at the bottom saying "Clearing buffer/cache memory..." with a spinner. There is no confirmation dialog, the action runs immediately.
Wait for the result
When it finishes you'll see "Buffer/cache memory cleared successfully". The Memory gauge updates to reflect the freed-up space.
Clearing the cache is safe. Linux uses spare RAM to speed up file reads, and it gives that memory back the moment a real program needs it. This action just releases the cache early.
Clean Disk Space on Linux Server - Remove Old Logs and Temp Files
When the Storage card is creeping into orange or red, you can wipe out old logs and temp files.

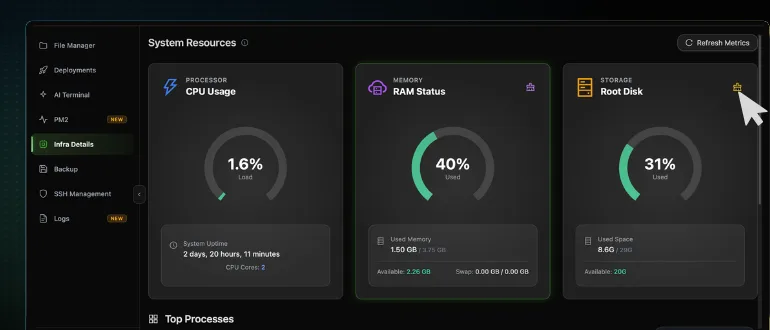

Find the Clean Disk Space icon
Storage card → Top right corner → Brush icon (orange)
Hover for the tooltip "Clean Disk Space (Remove old logs & temp files)".
Click the icon
A toast appears: "Cleaning disk space..." with a spinner. Like cache clearing, this runs straight away with no confirmation.
Wait for the result
When it finishes you'll see "Disk space cleaned successfully". The Storage gauge drops by however much was reclaimed.
What this action removes:
- Log files older than 2 days
- Compressed log archives (
.gz) - Systemd journal entries older than 3 days
- Temporary files in
/tmpand/var/tmp - Package manager caches (
apt-get cleanoryum clean all, depending on your OS)
This permanently deletes the files listed above. If you need to keep older logs for audit or compliance reasons, copy them somewhere safe before running this.
Kill a Runaway Process from the Dashboard
Clearing cache and disk space frees up resources a process has already used. When a process is the problem itself, pinning a core or eating the RAM, you can end it from the same Top Processes table you spotted it in. No copying the PID into a terminal, no kill command to remember.

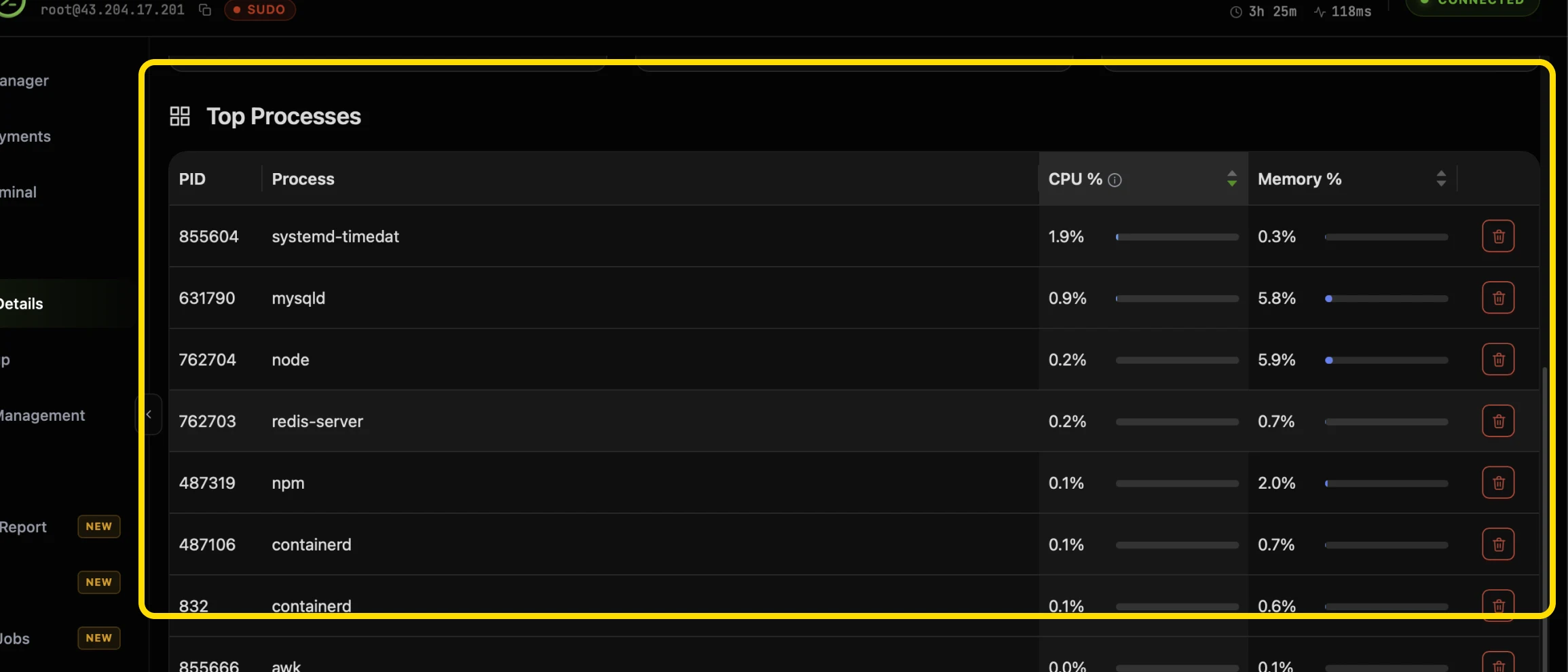

Find the process
Click the CPU % or Memory % header to sort
The heaviest process moves to the top. Check the Process name and PID before you act, PIDs get reused, and the table reorders itself every 2 seconds as the numbers move.
Click the red trash icon
Top Processes row → Right-hand column → Trash icon (red)
A confirmation dialog opens naming the process and its PID, so you can catch a misclick before anything happens.

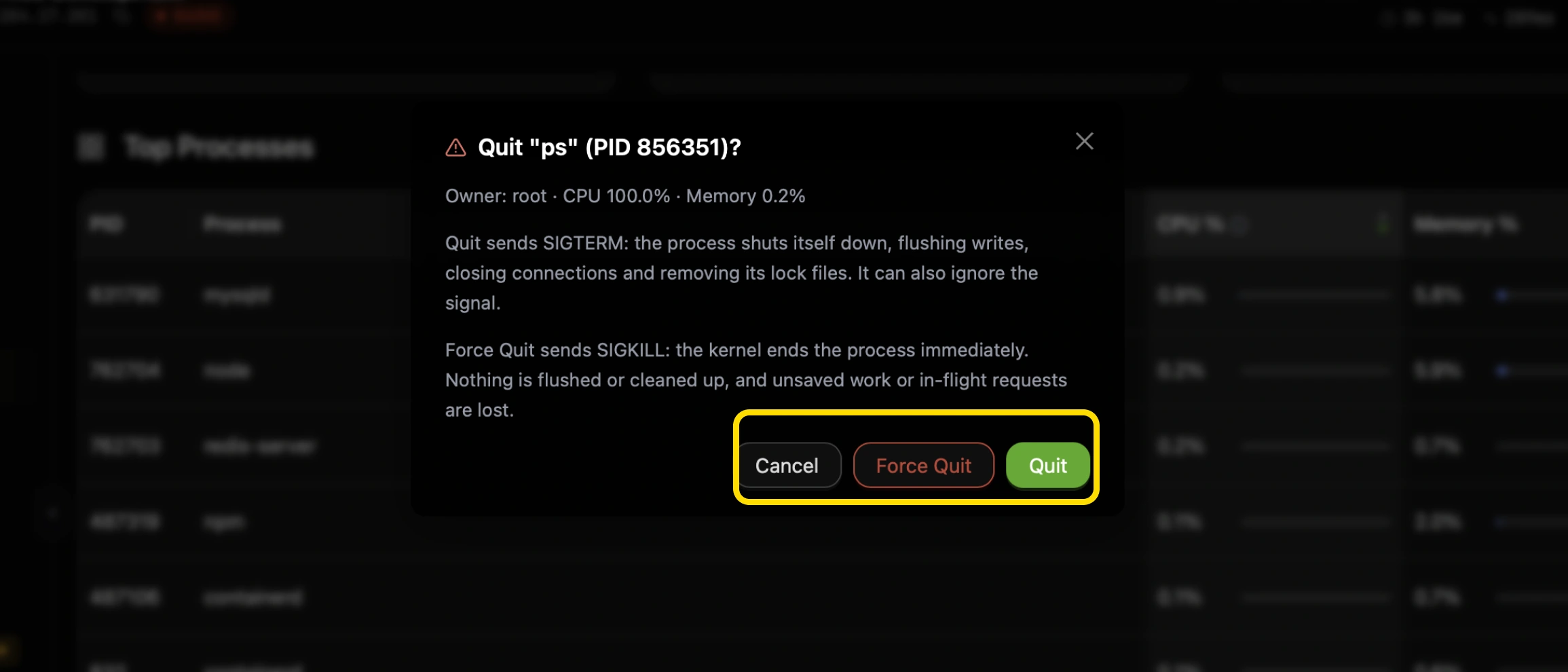

Confirm and watch the table
Click Quit, or Force Quit if it will not stop
The dialog names the process, its PID, owner, and current CPU and memory, then offers two ways out. Quit sends SIGTERM, the standard "please exit" signal: the process shuts itself down, flushing writes and closing connections, but it can also ignore the signal. Force Quit sends SIGKILL: the kernel ends it immediately, with nothing flushed or cleaned up, so unsaved work and in-flight requests are lost.
Start with Quit. A toast reports whether it worked, and the process drops off the table on the next 2-second refresh. If it is still there a few seconds later, open the dialog again and click Force Quit.
Quit asks a process to shut down, it doesn't force it. A process that ignores the signal stays in the table, in which case open the dialog again and click Force Quit. Also worth knowing: ending a service process stops the service. For anything supervised by systemd or PM2, restart it through its manager instead, otherwise the supervisor just starts it again and the kill looks like it silently failed.
Why Monitor a Linux Server with a GUI Dashboard Instead of CLI?
Most Linux server monitoring guides recommend command-line tools like top, htop, vmstat, iostat, and free. These tools are powerful, but they require memorizing syntax, reading raw terminal output, and SSH-ing into each server individually.
CtrlOps replaces this workflow with a visual dashboard that runs locally on your desktop. Here is how the two approaches compare:
| Task | CLI Approach | CtrlOps Approach |
|---|---|---|
| Check CPU usage | Run top or htop via SSH | Open Infra Details tab - see CPU gauge |
| Check memory usage | Run free -h via SSH | See Memory gauge with used/total/swap |
| Check disk usage | Run df -h via SSH | See Storage gauge with used/available |
| Find resource-heavy processes | Run ps aux --sort=-%cpu | View Top Processes table - click to sort |
| Clear buffer/cache | Run echo 3 > /proc/sys/vm/drop_caches as root | Click the Clear Buffer/Cache icon |
| Clean old logs | Write and run a find + rm script | Click the Clean Disk Space icon |
| Monitor during deployment | Keep SSH session open with watch | Keep Infra Details tab open - auto-refreshes |
For file-level operations on your server, the built-in File Manager provides a visual interface for browsing, uploading, and editing files over SSH.
This is not a replacement for enterprise monitoring platforms like Prometheus, Grafana, or Zabbix - those are designed for large-scale distributed infrastructure with alerting, historical data, and dashboards across hundreds of servers. CtrlOps is purpose-built for solo developers and small teams (2-10 people) who manage a handful of Linux servers and need a fast, visual way to check server health without deep CLI expertise.
To be messaged when CPU, memory, or disk crosses a limit, click Set alert on the gauge card, or switch on a ready-made alert in the Alerts tab. The check runs on the server itself, so it keeps watching after you close this tab, or CtrlOps.
Linux Server Monitoring Tips
Keep the Infrastructure Details tab open in a separate window during deploys or migrations. You'll spot a CPU or memory spike the moment it happens.
If a process is stuck consuming 100% CPU, end it straight from the table with the red trash icon in its row. Start with Quit, and reach for Force Quit only when the process ignores the polite signal, because Force Quit drops whatever the process had not yet written.
When the Storage card hits 90% red, clean the disk first. If it's still high, check the AI Terminal with du -sh /* 2>/dev/null | sort -h to find the biggest folders.
Troubleshooting
The connection to the server may have dropped. Look for a red banner at the top of the tab. If you see one, click Reconnect and the metrics will start flowing again. If there's no banner but numbers still won't move, click Refresh Metrics once.
The user CtrlOps logs in as needs sudo permission to drop caches. Open the AI Terminal and run sudo -v to confirm. If sudo asks for a password every time, ask your sysadmin to enable NOPASSWD for this user, or log in as a user with full root access.
Same root cause as above: this action runs commands like journalctl --vacuum-time and apt-get clean that need sudo. Confirm sudo works in the AI Terminal first.
Sort the Top Processes table by Memory %. If the heaviest processes still don't account for the usage, much of it is likely cache. Click Clear Buffer/Cache to confirm.
The tab polls every 2 seconds. On a slow or distant server the round trip can add visible lag. Switch to another tab and back, or click Refresh Metrics to force a fresh fetch.
Two likely causes.
The process ignored SIGTERM, which is the signal Quit sends. Open the dialog again and click Force Quit, which sends SIGKILL and ends it immediately.
Or the process is supervised by systemd or PM2, which restarted it immediately under a new PID. Stop or disable it through its manager instead of killing it, otherwise every kill looks like it silently failed.
Frequently Asked Questions
How do I monitor a Linux server without using the command line?
CtrlOps provides a visual Infrastructure Details dashboard that shows live CPU, memory, and disk usage on any connected Linux server. Open the app, click your server, and go to the Infra Details tab. You see color-coded gauges and a process table - no terminal commands required. CtrlOps runs on Mac, Windows, and Linux.
What metrics can I monitor on a Linux server with CtrlOps?
CtrlOps monitors CPU load percentage (with uptime and core count), RAM usage (used/total in GB, available memory, swap), root disk storage (used/total, available space), and the top 10 processes sorted by CPU and memory consumption. Metrics auto-refresh every 2 seconds.
Can I clear server cache and clean disk space from CtrlOps?
Yes. The Infrastructure Details tab has one-click actions for both. The Clear Buffer/Cache button releases cached memory that Linux holds for file read acceleration. The Clean Disk Space button removes log files older than 2 days, compressed archives, systemd journal entries older than 3 days, temp files, and package manager caches.
Can I kill a process on a Linux server without using the terminal?
Yes. Every row in the Top Processes table has a red trash icon. Click it, check the process name and PID in the dialog, and click Quit to send it a SIGTERM over SSH. The table refreshes on its next 2-second poll. If the process ignores SIGTERM, click Force Quit instead, which sends SIGKILL.
Can I set a CPU, memory, or disk alert from the Infra Details tab?
Yes. Each gauge card has a Set alert button. Click it and the same Turn on alert panel the Alerts tab uses opens for that resource: High CPU usage, High memory usage, or Disk space low. Set the limit, pick a channel, and turn it on. The button turns green and reads Alert on, and the alert is saved in the Alerts tab like any other, so it keeps running on the server while CtrlOps is closed.
Does CtrlOps require installing an agent on my Linux server?
No. CtrlOps connects via SSH and fetches metrics directly from your server. There is no server-side agent, daemon, or cloud sync. All data stays on your local machine, encrypted with AES-256.
How much does CtrlOps cost for server monitoring?
CtrlOps is $7/month per user (monthly) or $70/year per user (yearly). Every new account includes a 1 month free trial - no credit card required.
